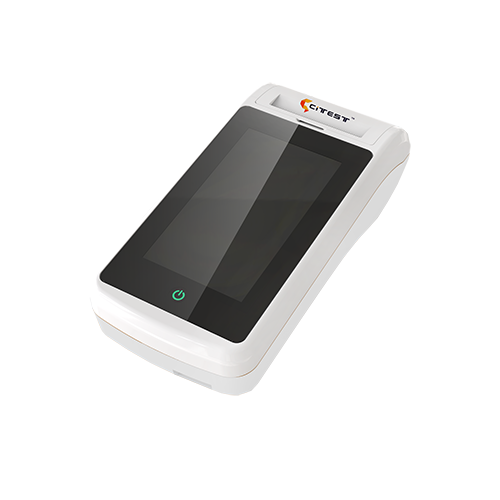

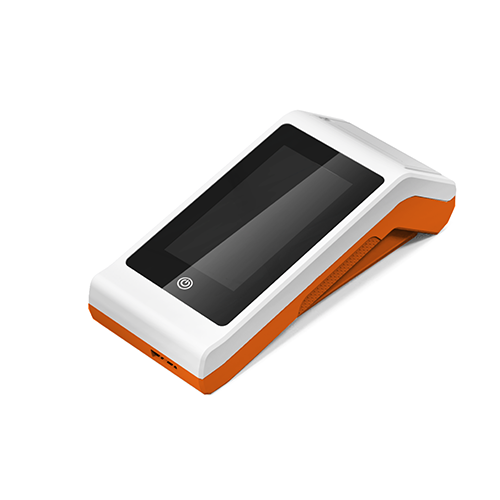

The Urine Analyzer is a semi-quantitative assessment of urine by using dry chemical methods. According to the principle of photoelectric colorimetry, the urine analyzer is used to evaluate the content of biochemical components in the animal urine through the change of color caused by the reaction of the reagent and urine biochemical components.
Testing Principle: Through reflection photometer to evaluate the color change of urinalysis strip, then calculate the concentration of related items and output semi-quantitative results.
Testing Wave Length: 460 nm, 550 nm, 620 nm
Testing Speed: 1 minute for each test
Repeatability: Coefficient of variation CV ≤1%
Output Options: Built-in 57 mm thermal printer
LCD Screen: 5 inches
Report Storage: Stores up to 10,000 sets of results
External Ports: Type-c x1; USB x2
Charging Voltage: AC 100-240 V 50/60 Hz
Dimension: 211 mm*100 mm*51 mm (L*W*H)
Power Supply: Lithium battery pack: 3.7 V 3000 mAh 11.1 Wh; Input: AC 100-240 V 50/60 Hz 0.5 A; Output: DC 5 V/3 A
Weight: 560 g
| Product features | Parameters |
| Format | Analyzer |
| Specimen | Urine |
| Storage Temperature | 5 °C~45 °C |
| Cat. No. | Product | Specimen | Pack |
| CTA-VUA | Urine Analyzer | Urine |
