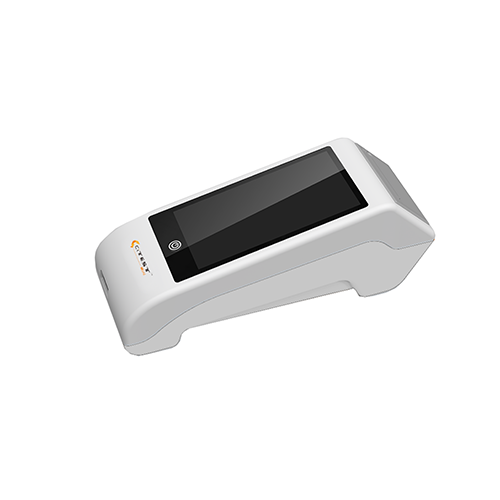

The Fluorescence Immunoassay Analyzer is an analyzer based on the detection of fluorescence emitted during immunoassay with antigen-antibody interactions. The analyzer is designed to provide quantitative or qualitative results by examining animal samples with specific test units.
Principle: Fluorescence Immunoassay
Test formats: Cassette
Measurement: Quantitative, Qualitative
Read Time: < 20 seconds
Test Time: Ref: Analytes
Specimen: Ref: Specific Package Insert
Power Supply: DC 18V 2 A
Adapter Input: AC 100-240V 50/60 Hz
Dimension: 275 mm*105 mm*100 mm (L*W*H)
Screen size: 5 inches
Weight: 1 kg
Spectrum: Excitation spectrum: Mean wavelength λ0=365nm Reception spectrum: Mean wavelength λ1=610nm
Memory: 10,000 records
Printer: Built-in thermal printer
Ports: LAN×1, USB×1, Type-Cx1
| Product features | Parameters |
| Principle | Fluorescence Immunoassay |
| Format | Analyzer |
| Reading Time | < 20 seconds |
| Pack | 1 Unit |
| Storage Temperature | 5~45°C |
| Shelf Life | 5 Years |
| Cat. No. | Product | Specimen | Pack |
| CTA-VFB | Fluorescence Immunoassay Analyzer | 1Unit |
